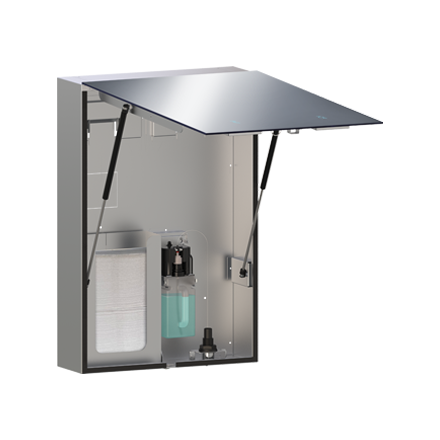

BTM SYSTEM – STAINLESS STEEL CABINET WITH FRAMELESS MIRROR, FOAM SOAP DISPENSER AND PAPER TOWEL DISPENSER, VELARE™ COLLECTION (10-0663-T)

BTM SYSTEM – STAINLESS STEEL CABINET WITH FRAMELESS MIRROR, FOAM SOAP DISPENSER AND PAPER TOWEL DISPENSER, VELARE™ COLLECTION (10-0663-T). Product code: 10-0663-T.

Features

• ASI JD MacDonald’s Velare™ Behind the Mirror (BTM) is designed with elegance and safety in mind, concealing consumables in a cabinet made from type 304 stainless steel. The cabinet features a mirrored door with back-lit icons that indicate functions provided from the bottom panel of each module. Mirror is made from 6 mm thick frameless tempered glass with pencil edges and eased corners with SS sheet intermediate stiffener and SS back plate with integral welded support mounts, hinge and lock keeper.
• The mirrored door is attached to the cabinet using a full width 4.8mm diameter concealed piano hinge and is secured shut using a tumbler lock and key. Support for mirror door is provided by twin damped gas springs to assist opening from 15° to 90° with soft-stop cushion at full open and when lowering to full closed position for locking.
• This wall mounted stainless steel cabinet conceals a hands-free automatic foam soap dispenser with a 1.5 L capacity and paper towel dispenser with a 500 towel capacity.
• Mirror back-lights operate on 100 – 240 VAC provided to duplex outlet (by others) concealed behind the cabinet into which a standard appliance power cord and AC adaptors are plugged into at installation.
• • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
• • Viscosity Range (mPa·s or cP): 1 – 100
• • pH Range: 5.5 ~ 8.5
• Matching filler modules (FM) are available as spacers between cabinets.
• View Installation Video

Specifications

• Overall Dimensions: 600 x 900 x 192 mm

Product information

Manufacturer product information

• 10-0663-X_Specification_Sheet
