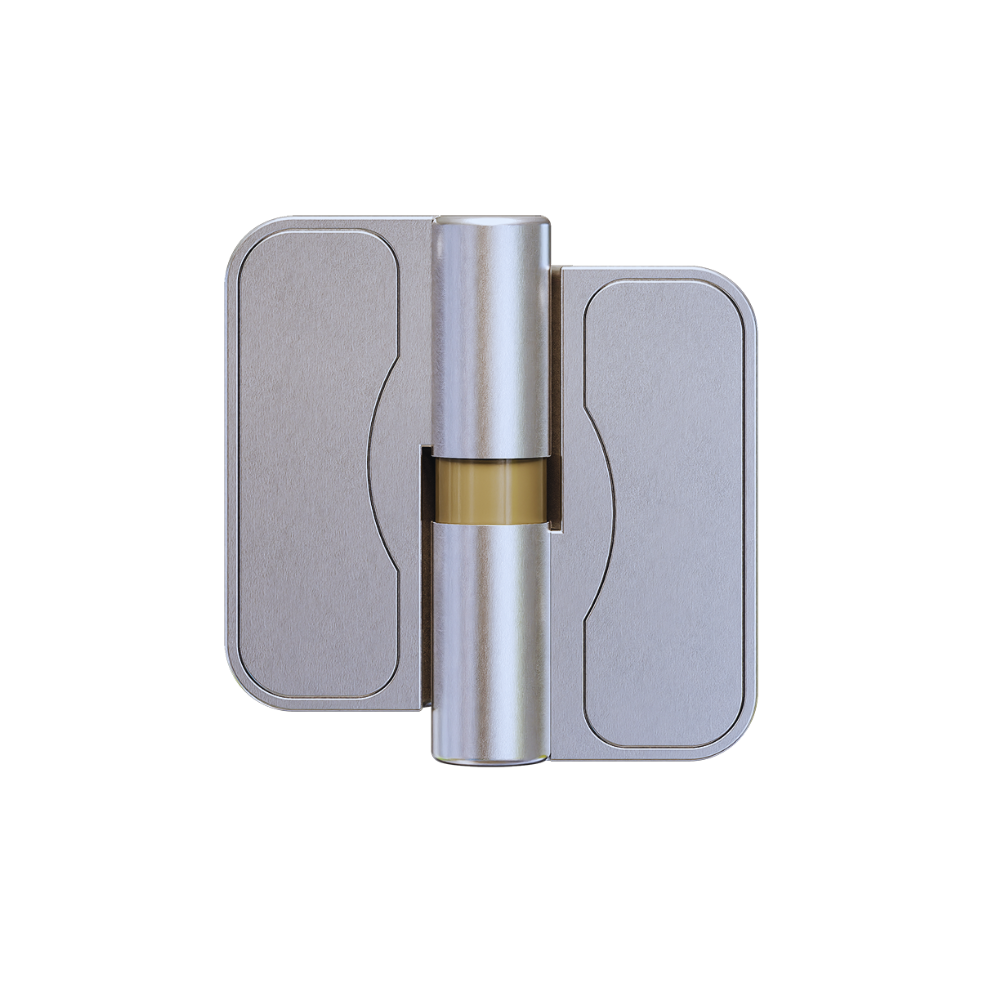

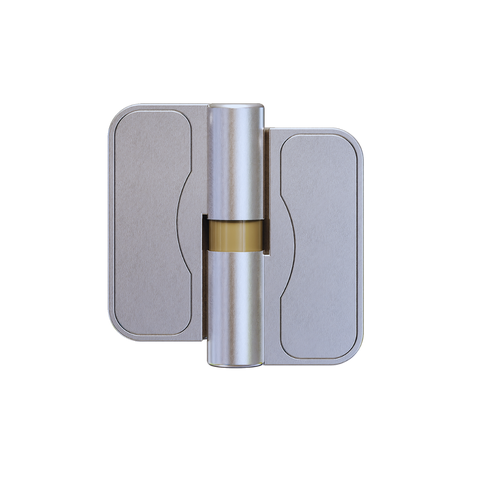

Moda Gravity Hinge in Satin Chrome Plate - MODA_LHGRAVITY_SCP (Left Hand)

Moda Gravity Hinge in Satin Chrome Plate. Product code: MODA_LHGRAVITY_SCP.

Selected model

Left Hand

Features

• Diecast Zinc Alloy ZP3
• Brass Shaft, Nylon Inserts, ABS Snap-On Covers
• Reversible Hold Open/Hold Closed
• Concealed Screw Fix or Bolt Through
• Available in Left Hand or Right Hand - Please Specify

Specifications

• Material: Diecast Zinc, Alloy ZP3 Brass Shaft Nylon Inserts ABS Snap-On Covers
• Finish: Satin Chrome Plate
• Mounting: Concealed Screw Fix or Bolt Through Universal Screw Fixings Supplied
• Features: The step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function The nylons are set so the door can move past 90° whilst still functioning correctly The nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing Interchangeable hinge covers including Moda Spring Hinge The fixing holes correlate with the bolt-through faceplates making installation a breeze Reversible Hold Open / Hold Closed Lift off capability
• Minimum Hinge Clearance For Lift-Off Hinges: 30mm
• Load Rating: 15Kg per hinge For optimum performance - 2 hinges per door up to 30Kgs For doors over 30Kg allow for 15Kg per hinge Note: 3 Hinges per door is recommended to prevent door bowing

Installation and notes

• Disclaimer: Gravity Hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment. When selecting this product, please view our Product Disclosure Statement in the Product User Guide Tab.

Product information

Manufacturer product information

• Care and Maintenance Guide - Toilet Partition Hardware
• Moda Gravity Hinge Installation Guidelines-
• Gravity Hinge Product Disclosure Statement
• Metlam Australia Product Warranty Statement - August 2025
